Pull Testers
Digital pull testers and proof load testers for anchors, fixings, eyebolts and scaffold ties, to 25 kN or 60 kN, designed and made in the UK, with the free Staht Connect app.
Digital pull testers, designed and made in the UK
A pull tester, also called a proof load tester, anchor tester, fixings tester, pull-out test kit or pull test machine, puts a measured load on an installed anchor, eyebolt or scaffold tie anchor, so you can show it holds. Staht designs and makes its pull testers in the West Midlands, and sells them direct and through dealers in the UK and abroad.

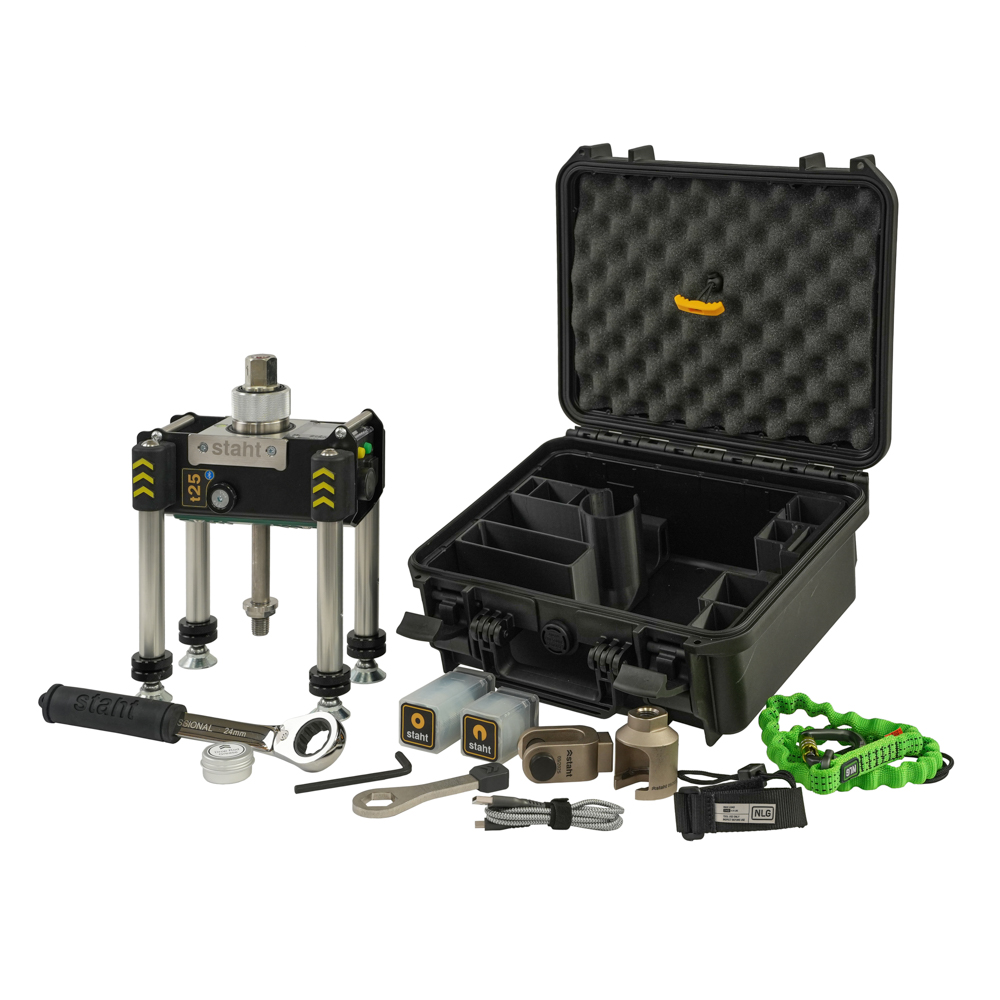

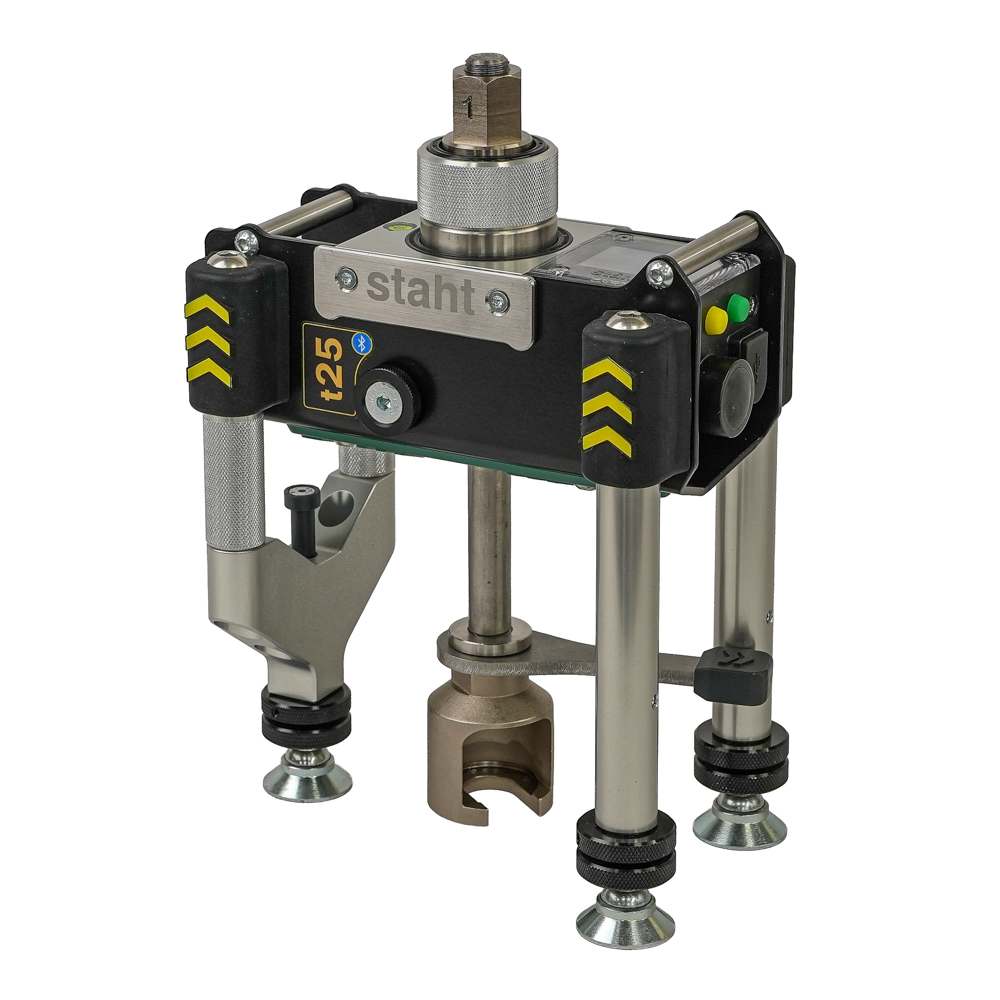

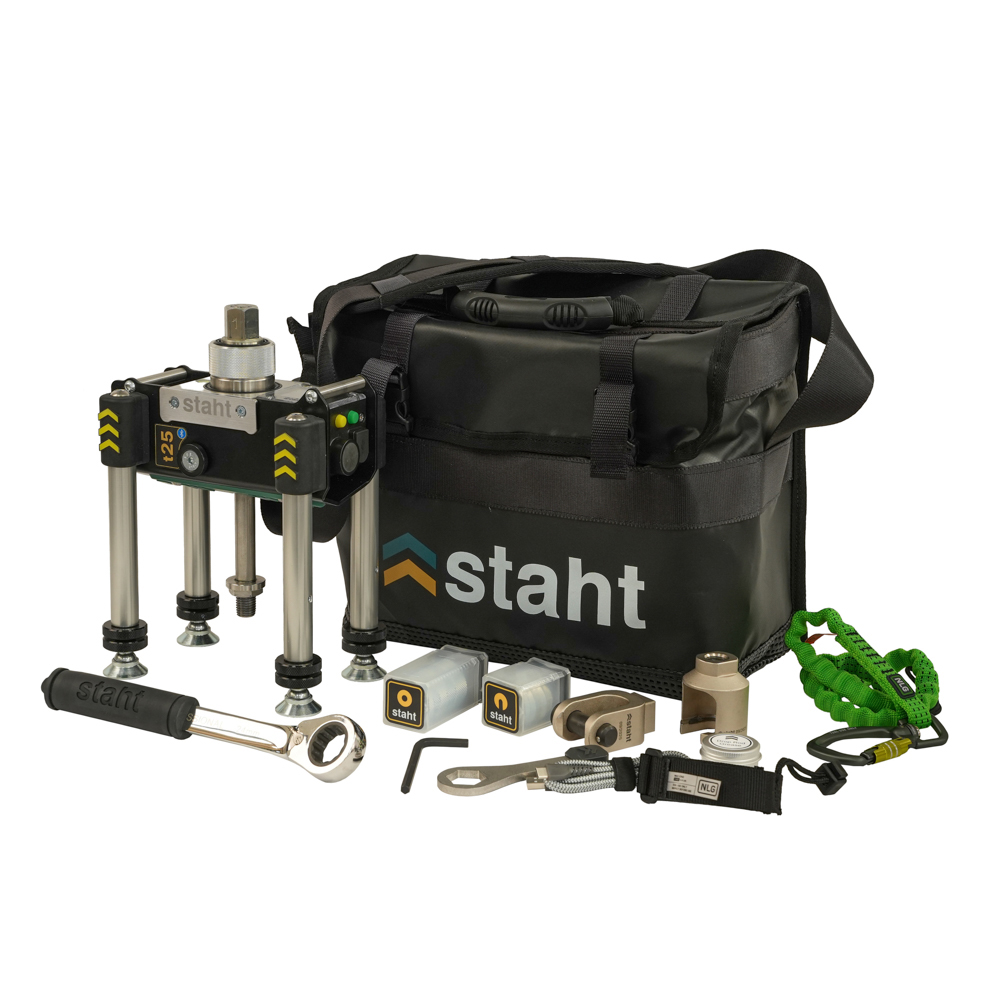

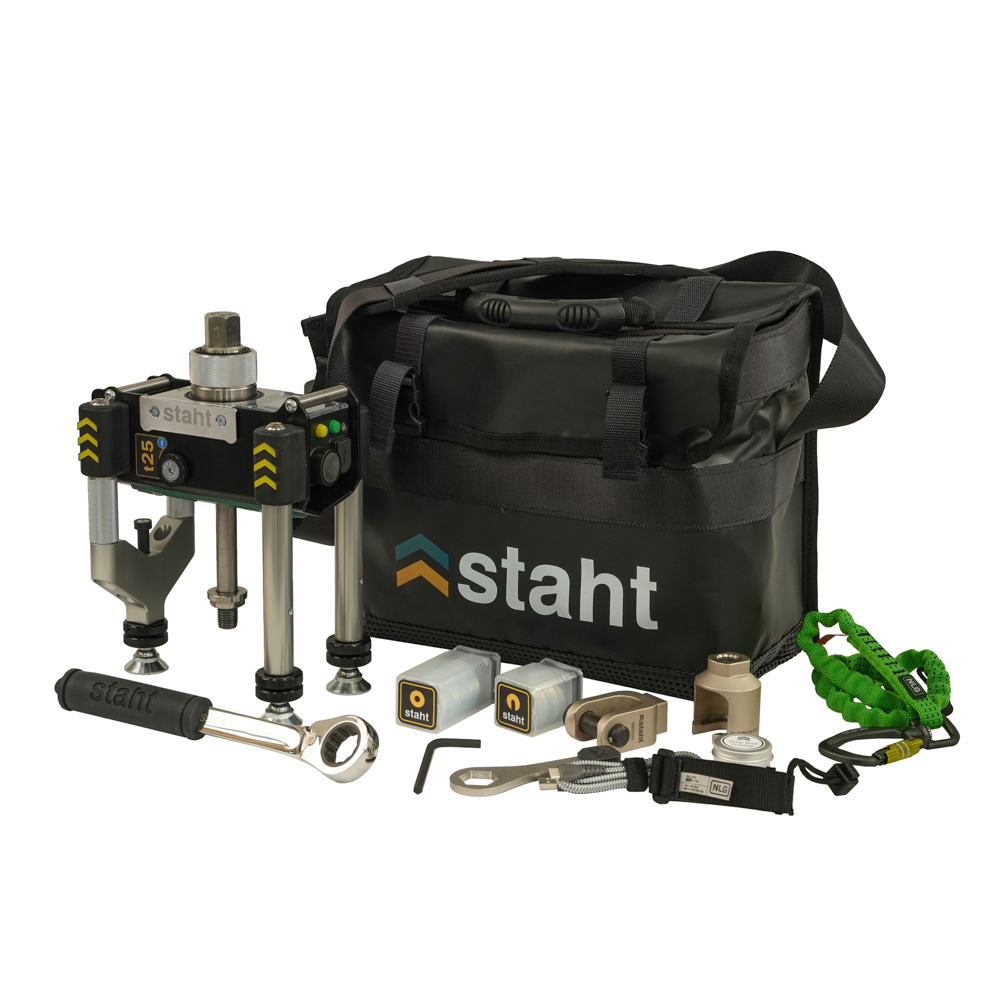

- t25: tests anchors, safety eyebolts and scaffold ties up to 25 kN (5,620 lbf), for anchors from M6 to M16. It warns you of overload at 30 kN. Choose four legs or three, in a shoulder bag, a padded bag or a heavy duty mini case. Staht won Product of the Year for the t25 at the Scaffolding Excellence Awards 2025.

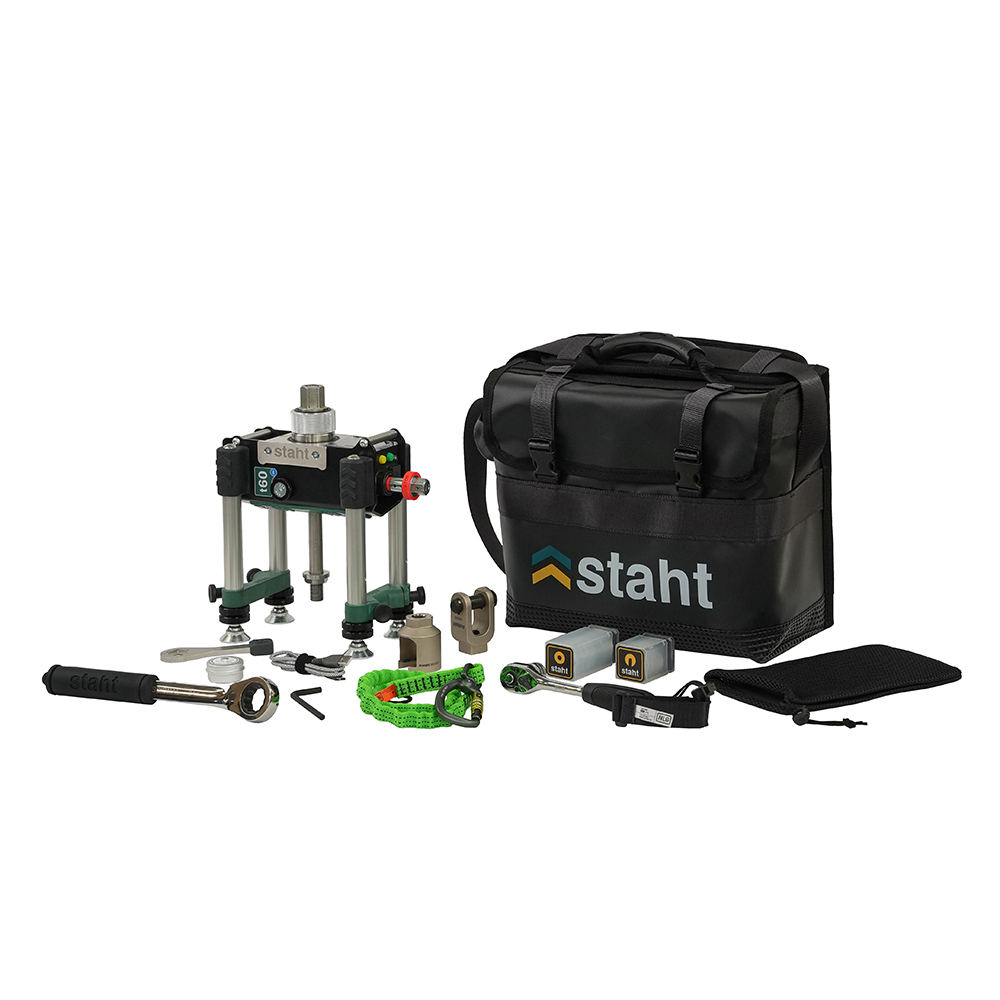

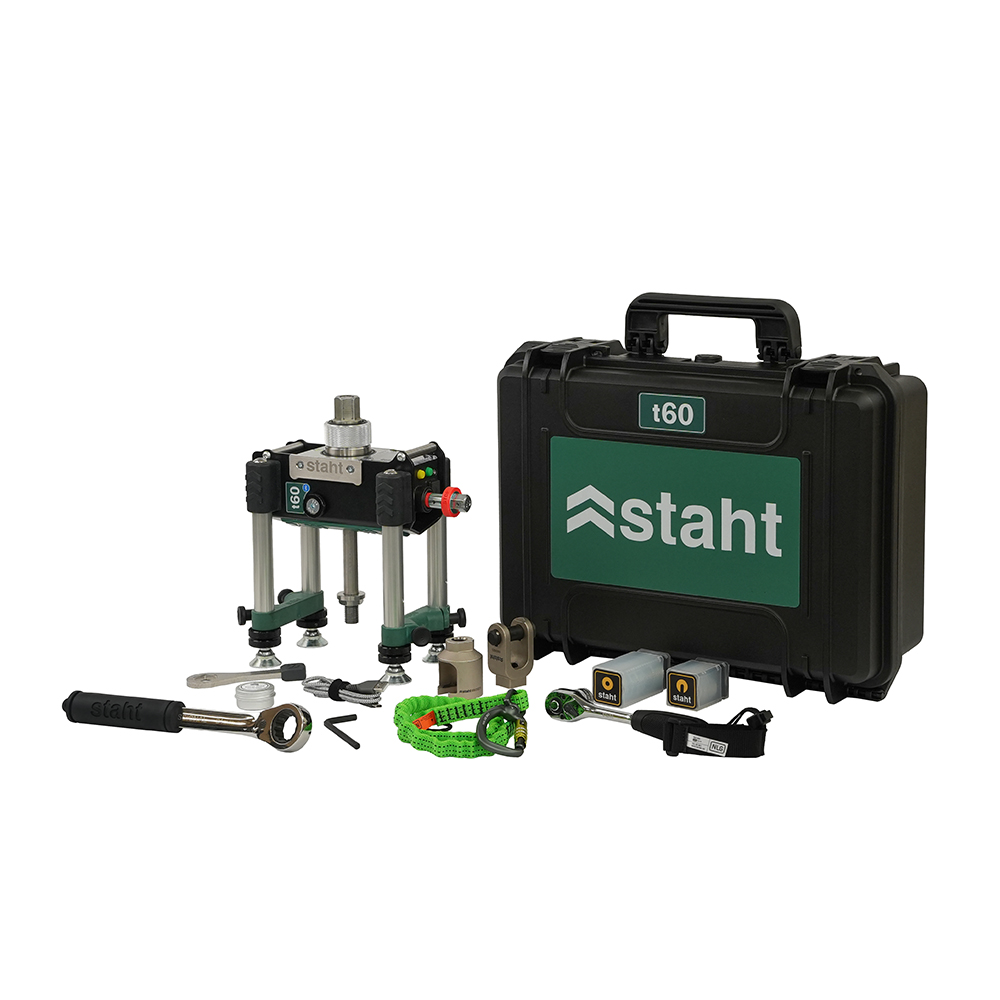

- t60: reaches 60 kN (13,489 lbf) with less than 25 Nm of torque, for anchors from M6 to M20. In a heavy duty case or a shoulder bag.

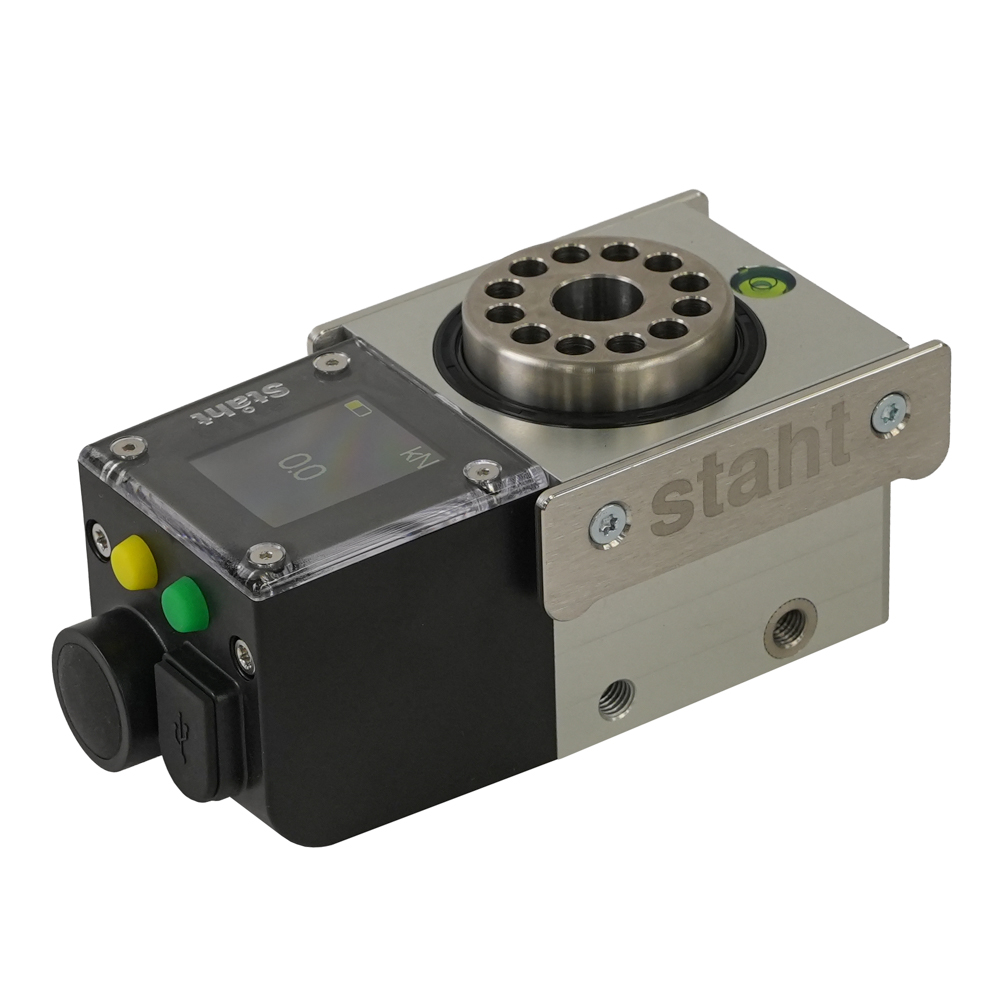

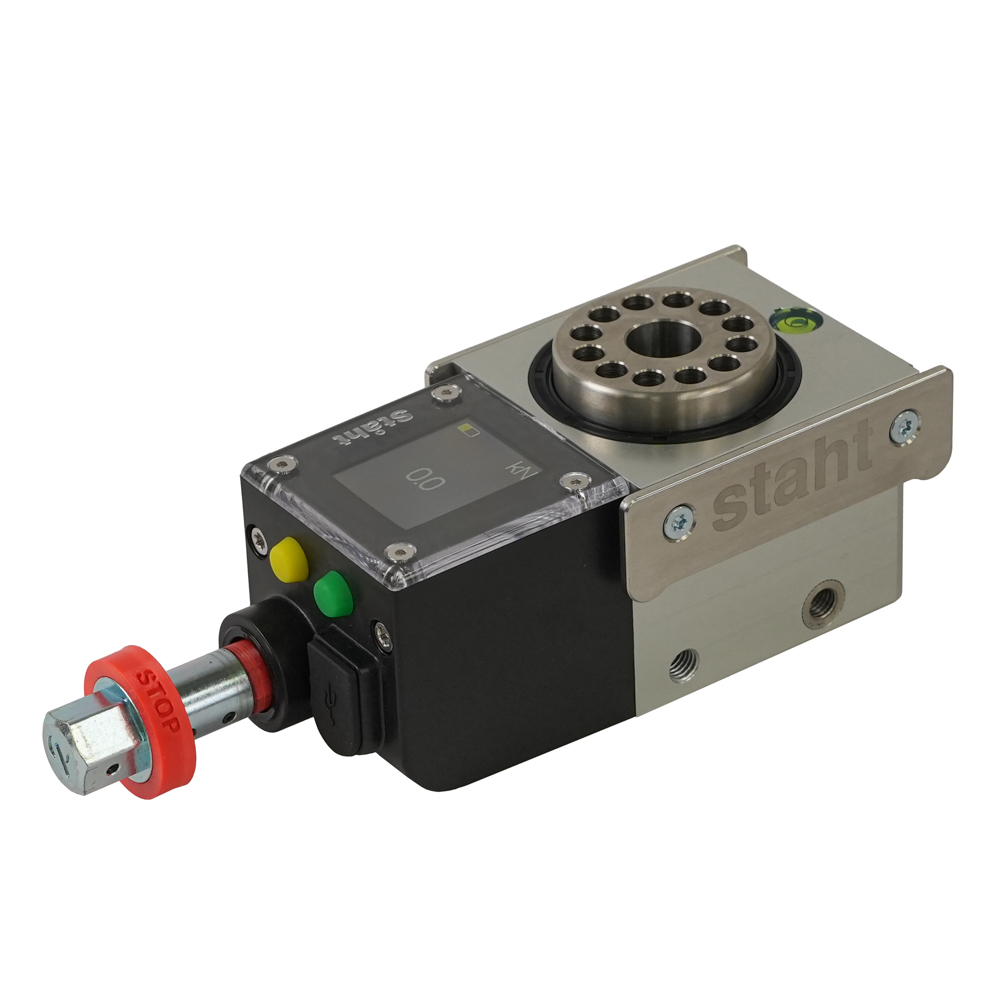

- Load cells on their own: the t25 and t60 load cells fit a Staht bridge or your own design.
- TP60 ground screw kit: a 60 kN digital load cell and displacement sensor with a base frame, for pull testing ground screws.
Every kit has a sunlight-readable colour screen showing live and peak load together, metric and imperial units, a USB-C rechargeable battery and a UKAS-traceable calibration certificate. Each pairs over Bluetooth with the free Staht Connect app, which records every test for your report.
What's in a kit: the digital load cell and its bridge, an anchor jaw with threaded washers (M6 to M16 in t25 kits, M6 to M20 in t60 kits) and slotted washers (M6 to M16), a clevis for eyebolts and ring bolts, a 24 mm ratchet spanner, an anti-rotation arm, tool and wrist lanyards and a USB-C cable, in a bag or case. Each kit's data sheet lists its contents in full.

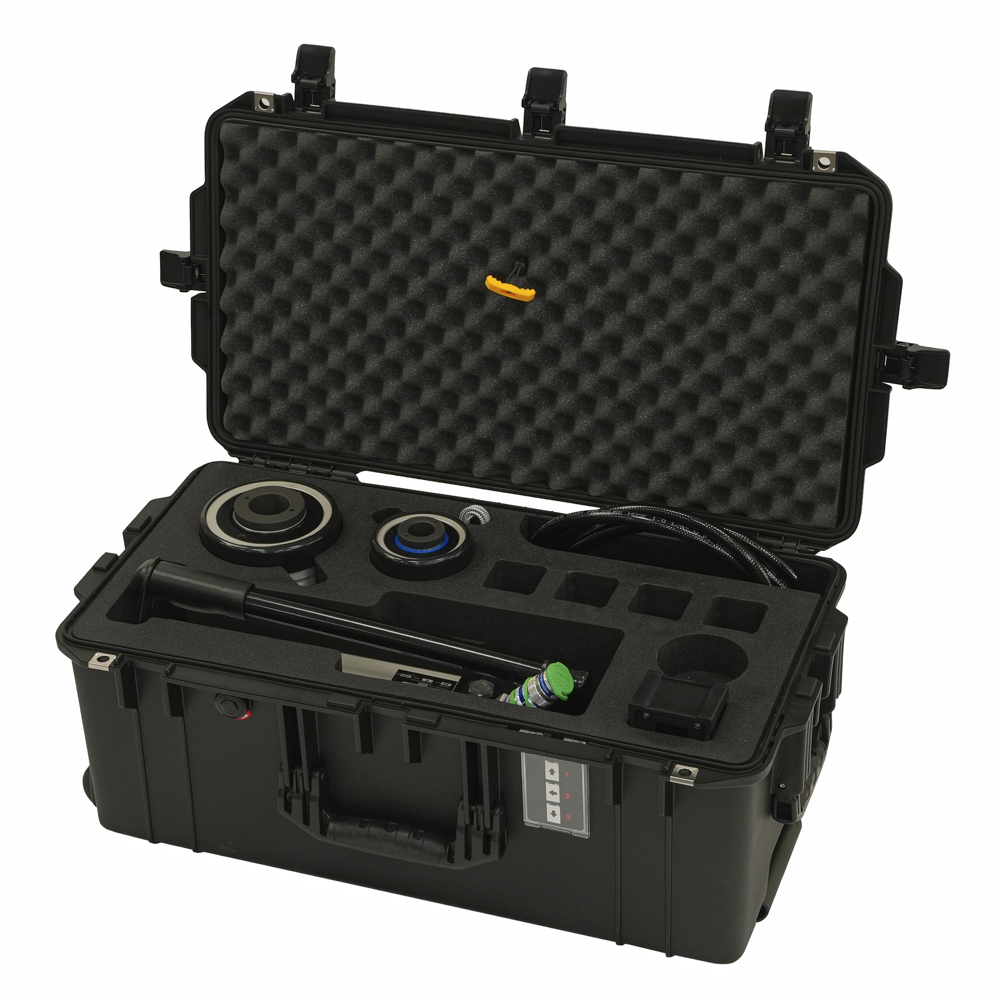

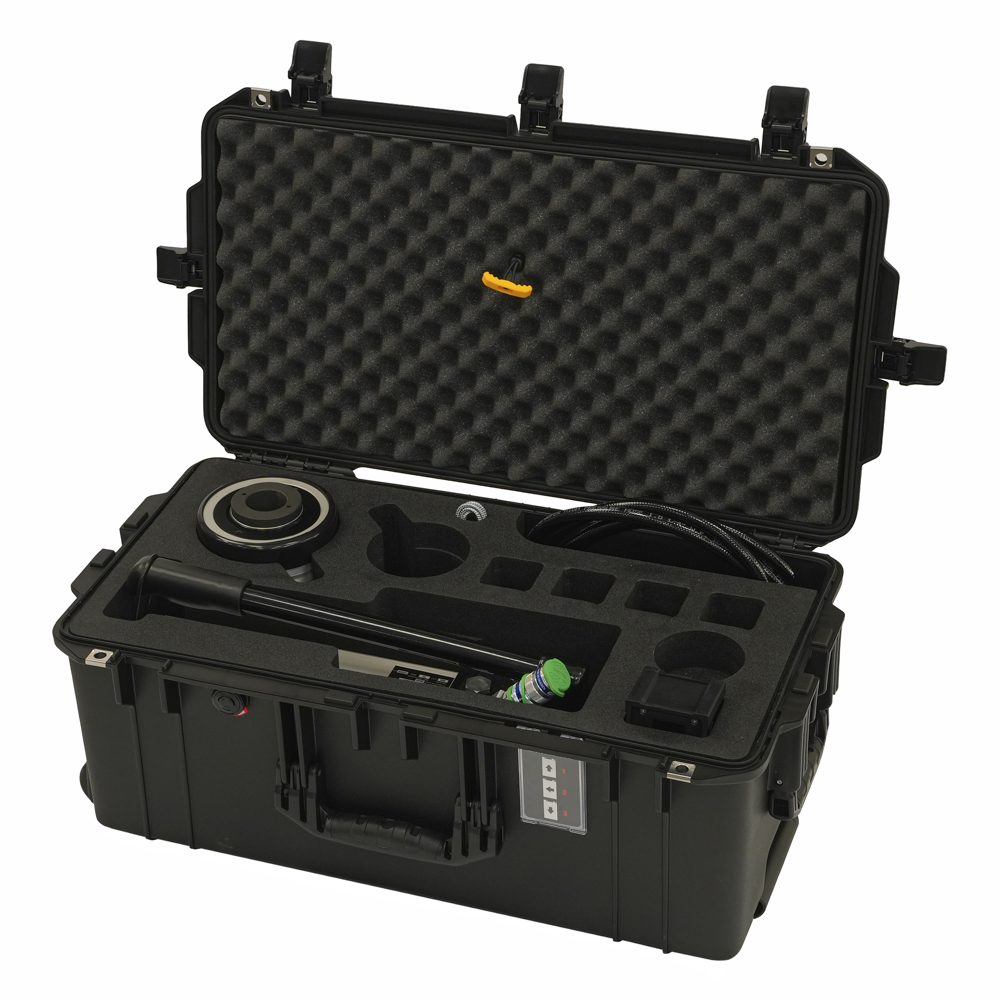

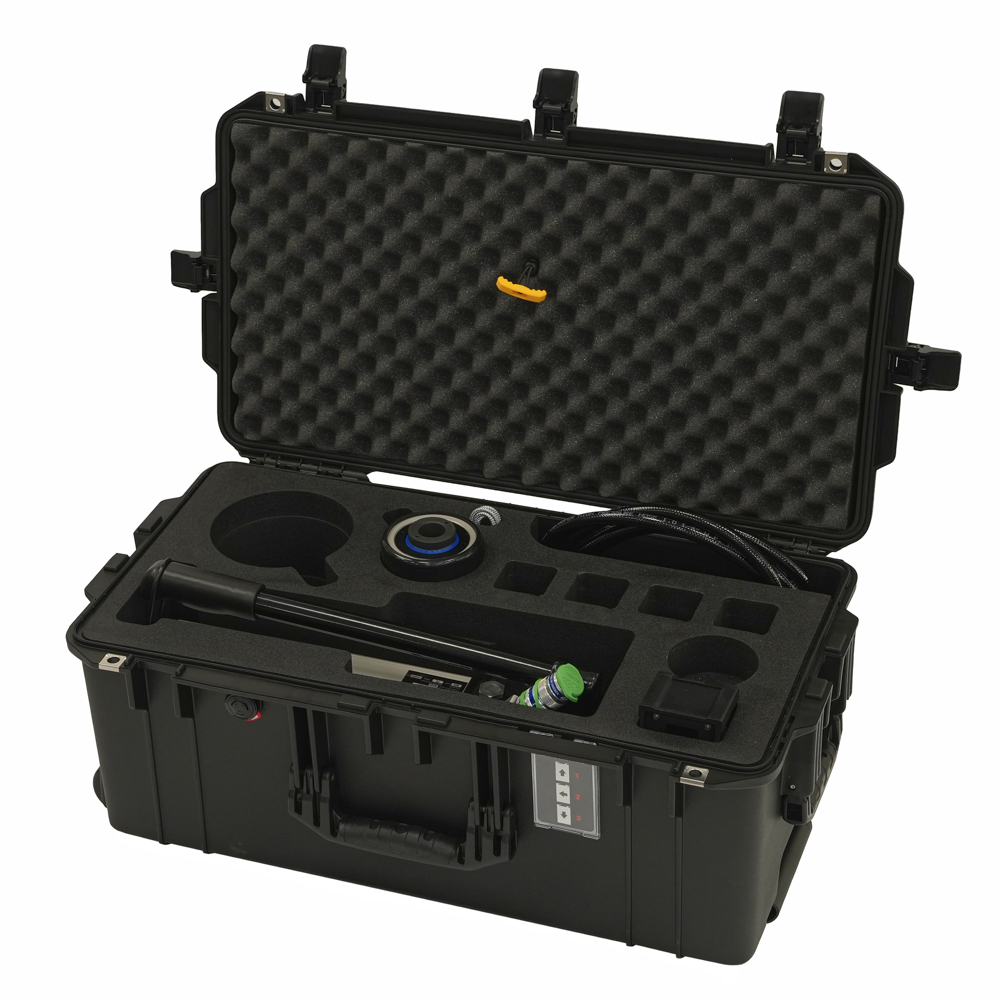

The kits are designed for testing to BS 8539, BS 7883, NASC TG4:25 and AEFAC TN05, plus ASTM E3121 for the t60. For wider or taller set-ups see the bridges; for bigger threads, the adapters. For loads above 60 kN, see the heavy duty kits.
We hire t25 kits at £150 a week ex VAT (£180 inc VAT) for a minimum of one week, with a £500 refundable deposit. Each hire kit is calibrated and comes with its certificate. See hire kits.
Scaffold ties: see the scaffold tie testing kit and how a tie test is done.
Guides: what is a pull tester?, proof load testing anchors, which pull tester to buy and pull testers compared.
Testing by industry: scaffolding, height safety, facilities management, rope access, construction. See also every application.
Questions and answers
Yes. Pull tester, anchor tester, anchor pull tester, fixings tester and pull-out tester are names for the same kind of instrument: it puts a measured tensile load on an installed anchor, fixing or eyebolt and shows the load. The Staht t25 (to 25 kN) and t60 (to 60 kN) are pull testers in this sense.
The name doesn't set the kind of test. Most site tests are proof tests: the anchor is loaded to a set proof load and checked to hold it without movement or damage, and it stays in use. A test to failure, sometimes called a pull-out test, loads an anchor until it fails, to find an allowable resistance, and is never done on anchors that will be used on the job. Both are done with a pull tester, within its maximum load. See proof testing explained.
A pull-off tester is different: it measures how well a coating sticks to a surface.
Go by the highest load you need to apply. The t25 tests up to 25 kN, for anchors from M6 to M16, eyebolts and scaffold ties. The t60 tests up to 60 kN, for anchors from M6 to M20. For bigger anchors and rebar, the heavy duty kits reach 176 kN or 358 kN. Not sure? Ask us.
Each t25 and t60 kit has the digital load cell and its bridge, an anchor jaw with threaded and slotted washers for studs and bolt heads, a clevis for eyebolts and ring bolts, a 24 mm ratchet spanner, an anti-rotation arm, lanyards, a USB-C cable and a calibration certificate, in a bag or case. For M22 to M30 or imperial threads, add a threaded adaptor; for wider or taller set-ups, a bridge.
The t25. Every proof load in NASC TG4:25's table (4.4, 7.6, 11.4 and 15.3 kN) is within the t25's 25 kN range. Preliminary tests on nylon anchors for 9.1 or 12.2 kN ties need 27.3 or 36.6 kN, so use the t60. See scaffold tie testing.
Yes. The Staht Connect app is included as standard with the t25 and t60 and is free on iOS and Android. It pairs over Bluetooth and records peak load, target load, pass or fail and the time of each test, with photos, video and a map pin.
We hire t25 kits at £150 a week ex VAT (£180 inc VAT) for a minimum of one week, with a £500 refundable deposit. Each hire kit is calibrated and comes with its certificate. See hire kits.
Each kit comes with a UKAS-traceable calibration certificate. Calibrate at least every 12 months: site tests to BS 8539 and NASC TG4:25 need a tester calibrated within the last 12 months. Calibrate sooner after heavy use, a drop or an overload. We calibrate and service t25 and t60 testers.
