Bridges
Modular bridges for wider or taller tests with the t25 and t60, up to 60 kN.
Modular bridges for the t25 and t60
Installers don't always leave room to test. Staht's modular bridges fit the t25 and t60 testers so you can test anchors, roof anchors and posts, eyebolts and tie-backs that need more width or height than the standard bridge gives.
| Bridge | Maximum load | Span | Maximum clearance |
|---|---|---|---|

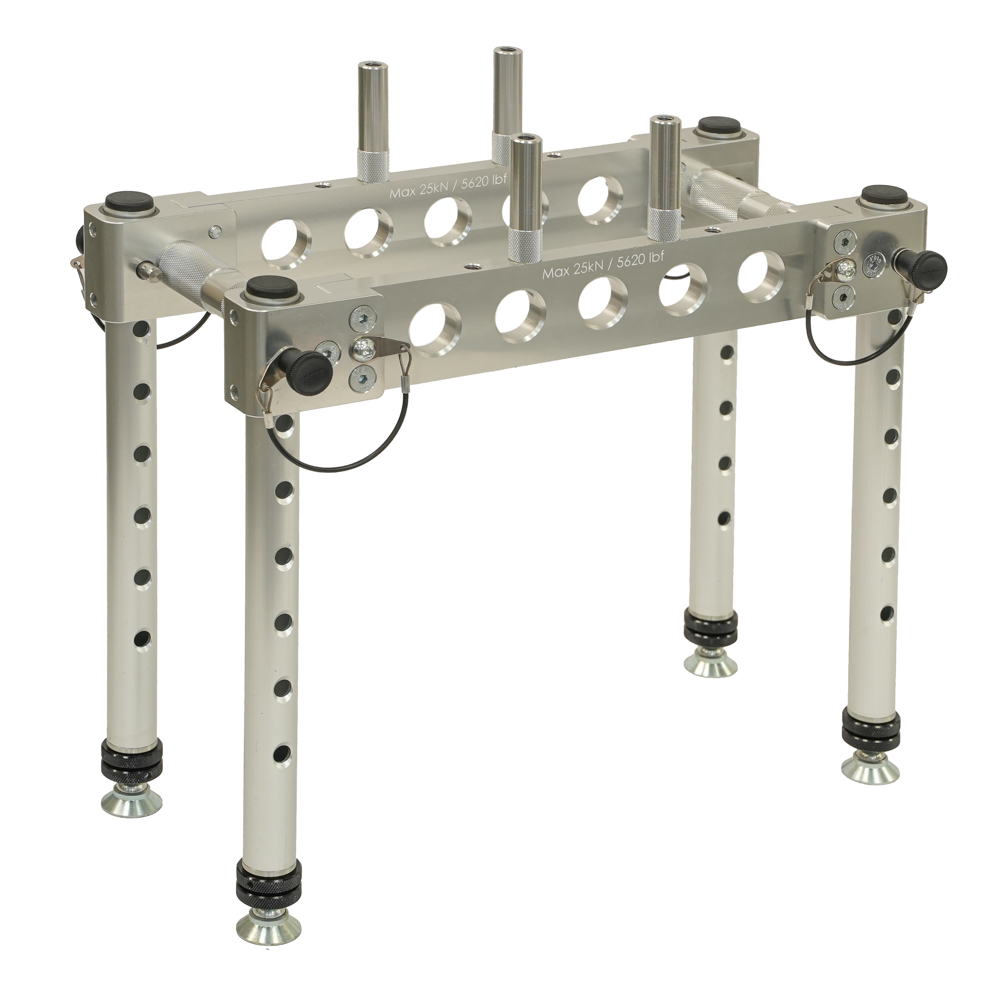

| 375-25 | 25 kN (5,620 lbf) | 375 mm | 340 mm |
| 575-25 | 25 kN (5,620 lbf) | 575 mm | 544 mm |

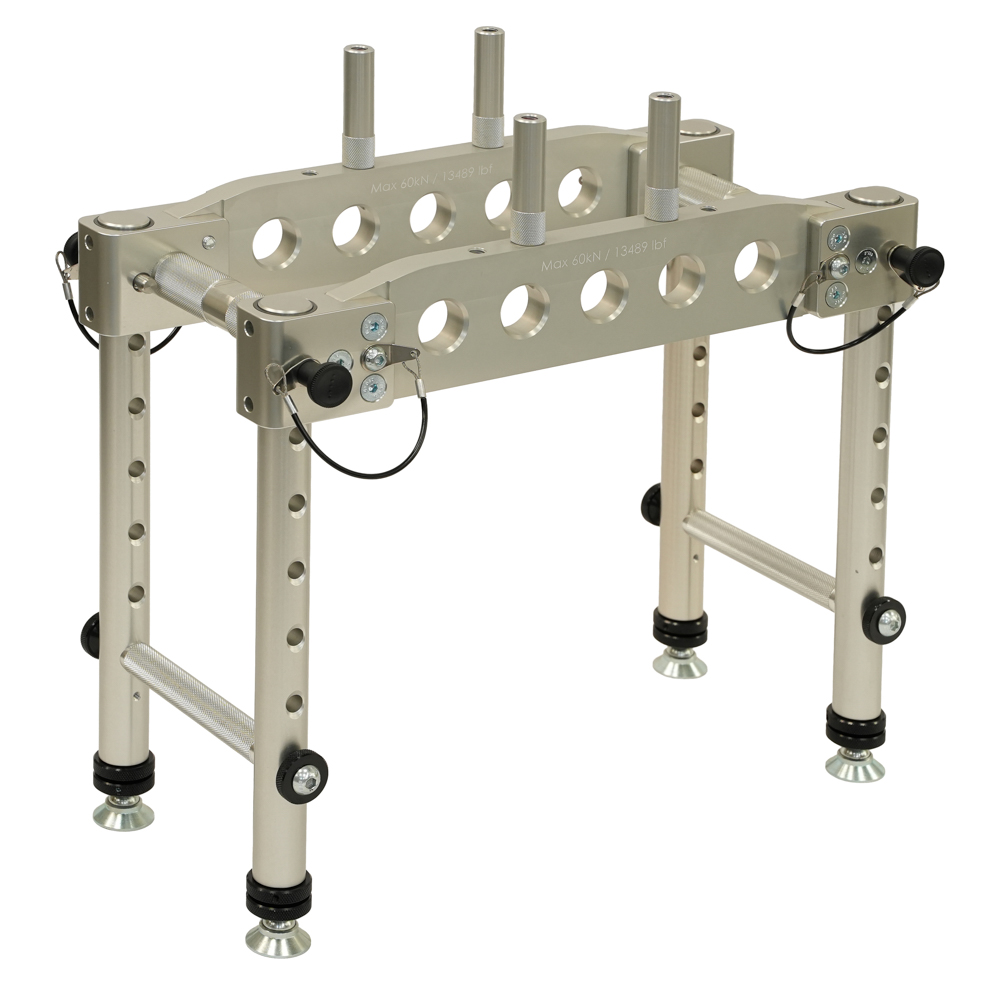

| 375-60 | 60 kN (13,488 lbf) | 375 mm | 330 mm |
Built for site
- Four indexable legs for strength, stability and stiffness.

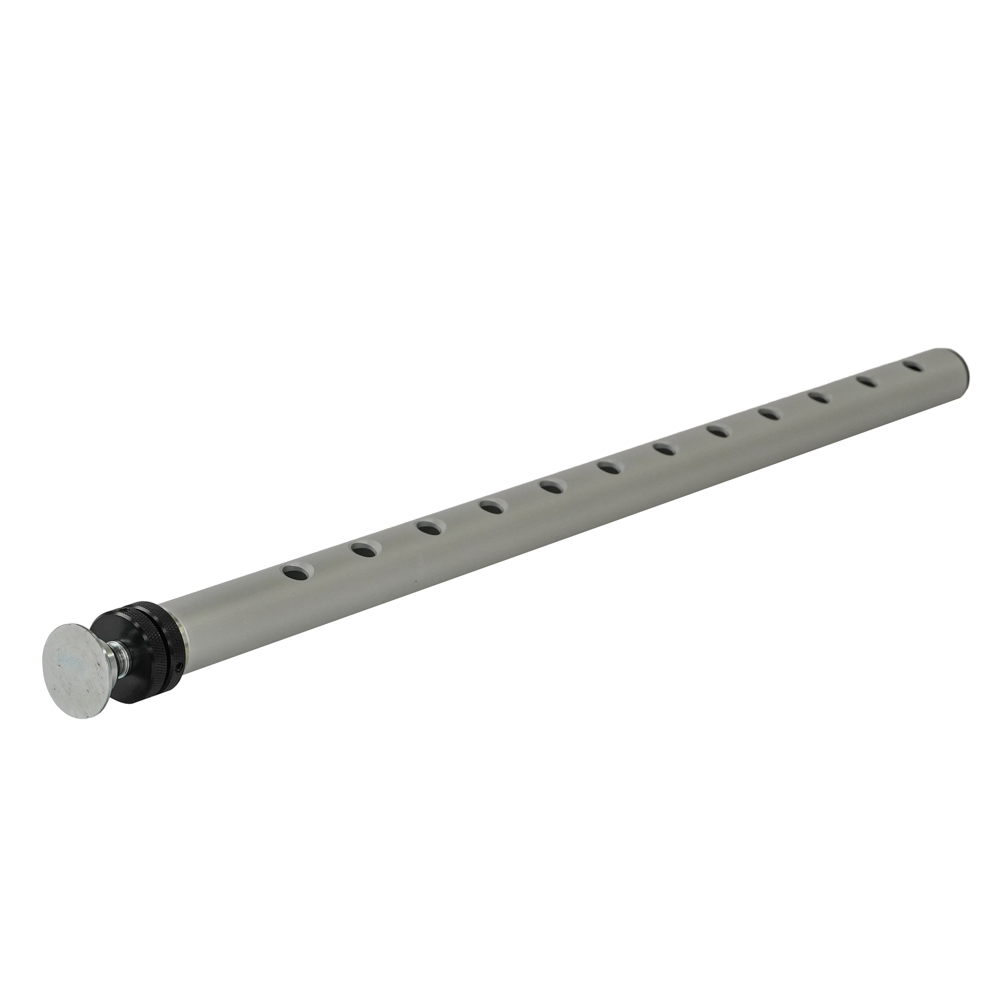

- Adjustable, captive feet to level the bridge.

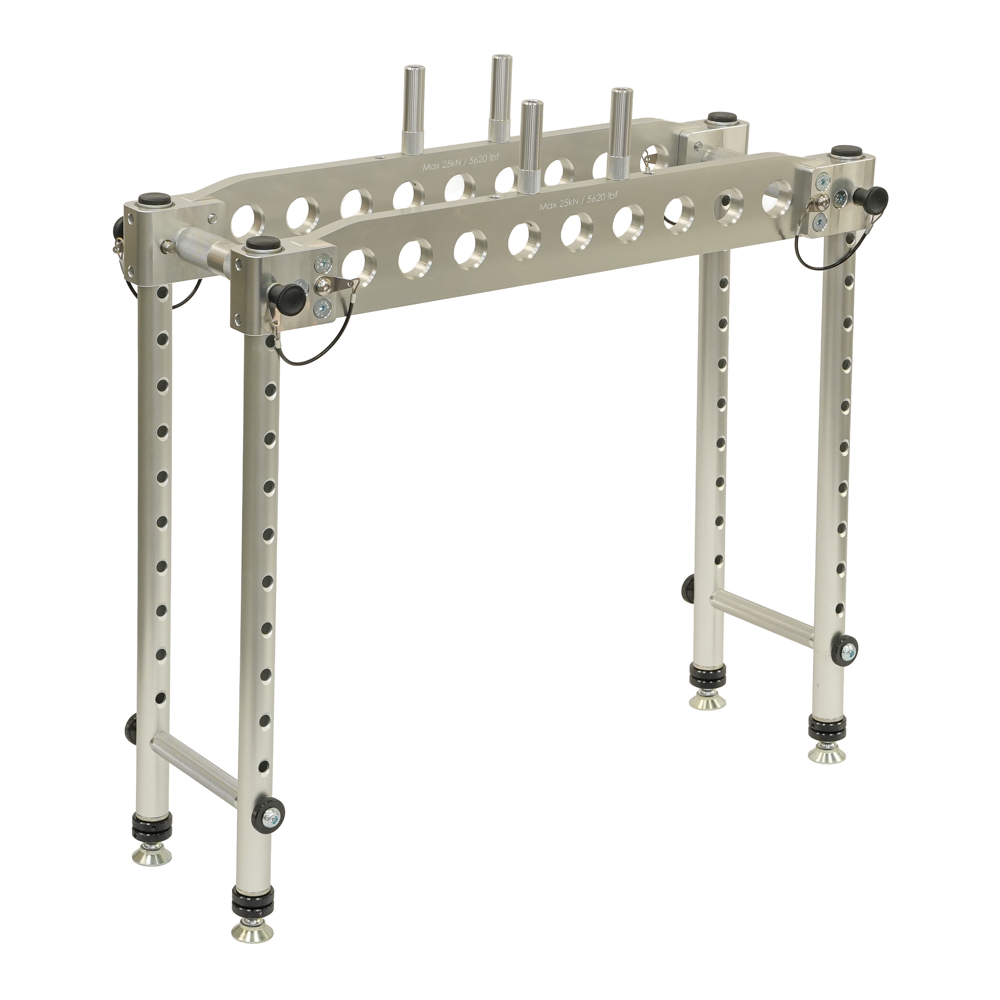

- Leg braces on the 575-25 and 375-60 for rigidity.

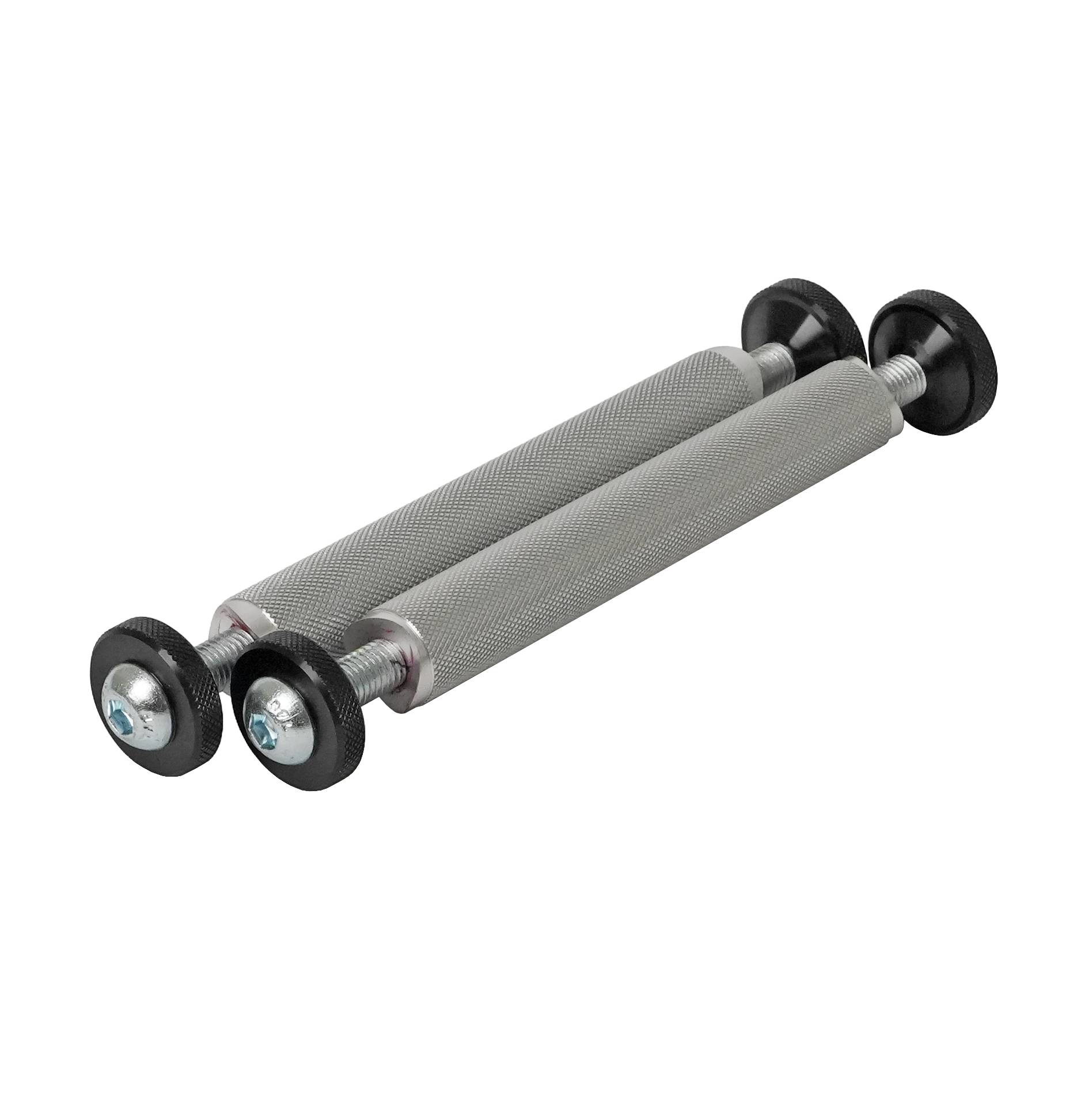

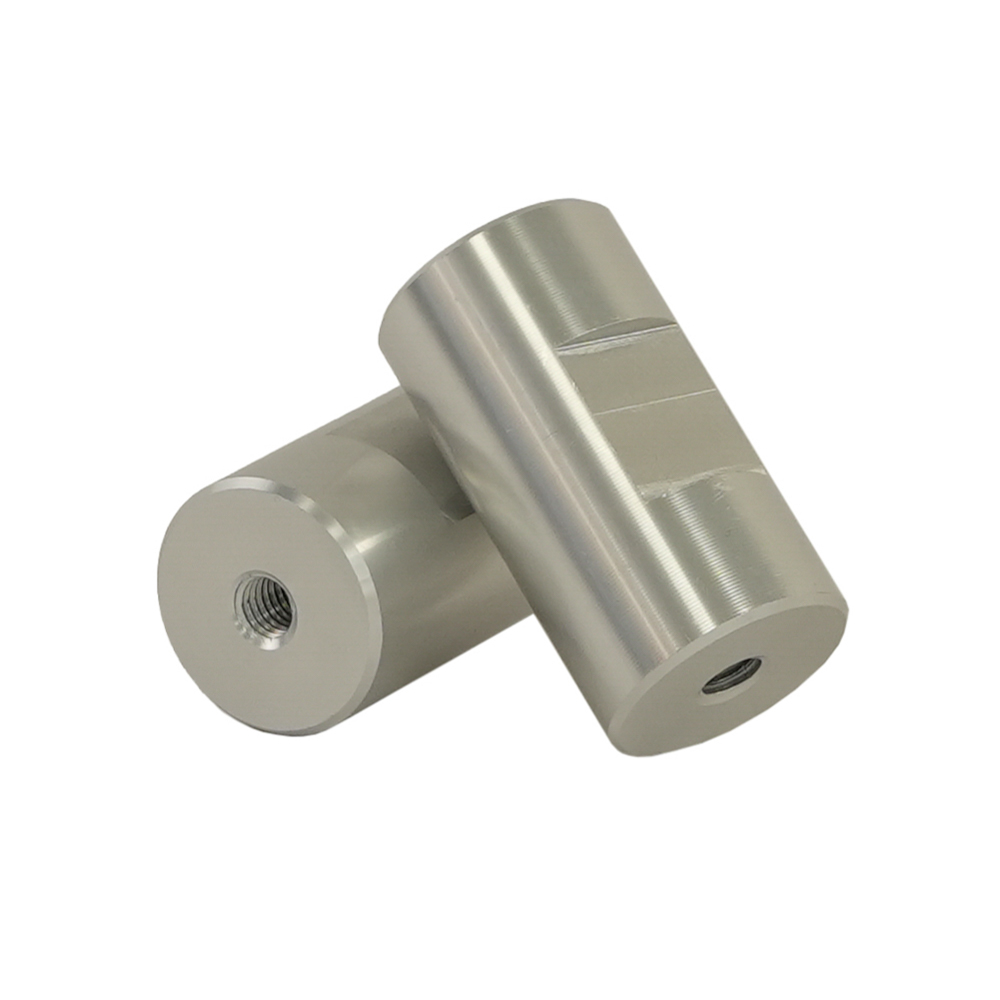

- A wide stance as standard, with narrow spacers as an option.

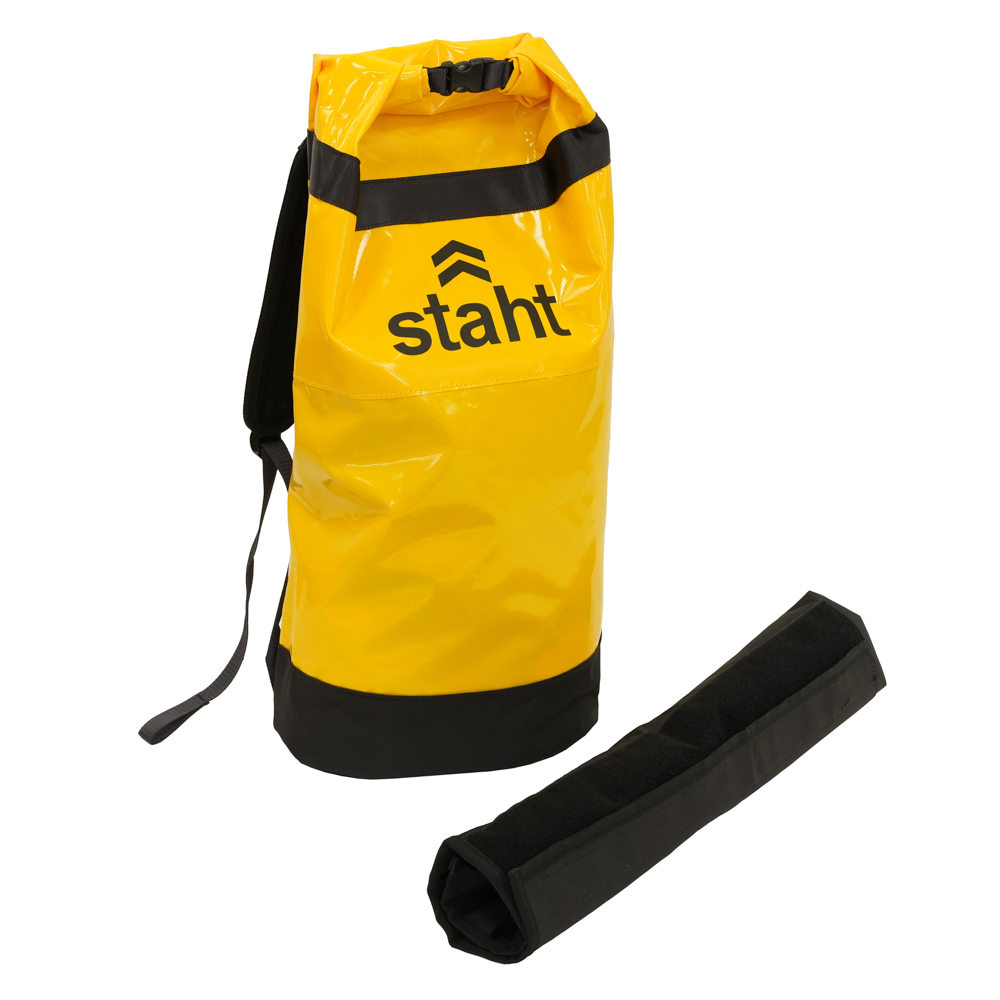

- A padded Staht bag with shoulder straps and an inner roll bag.

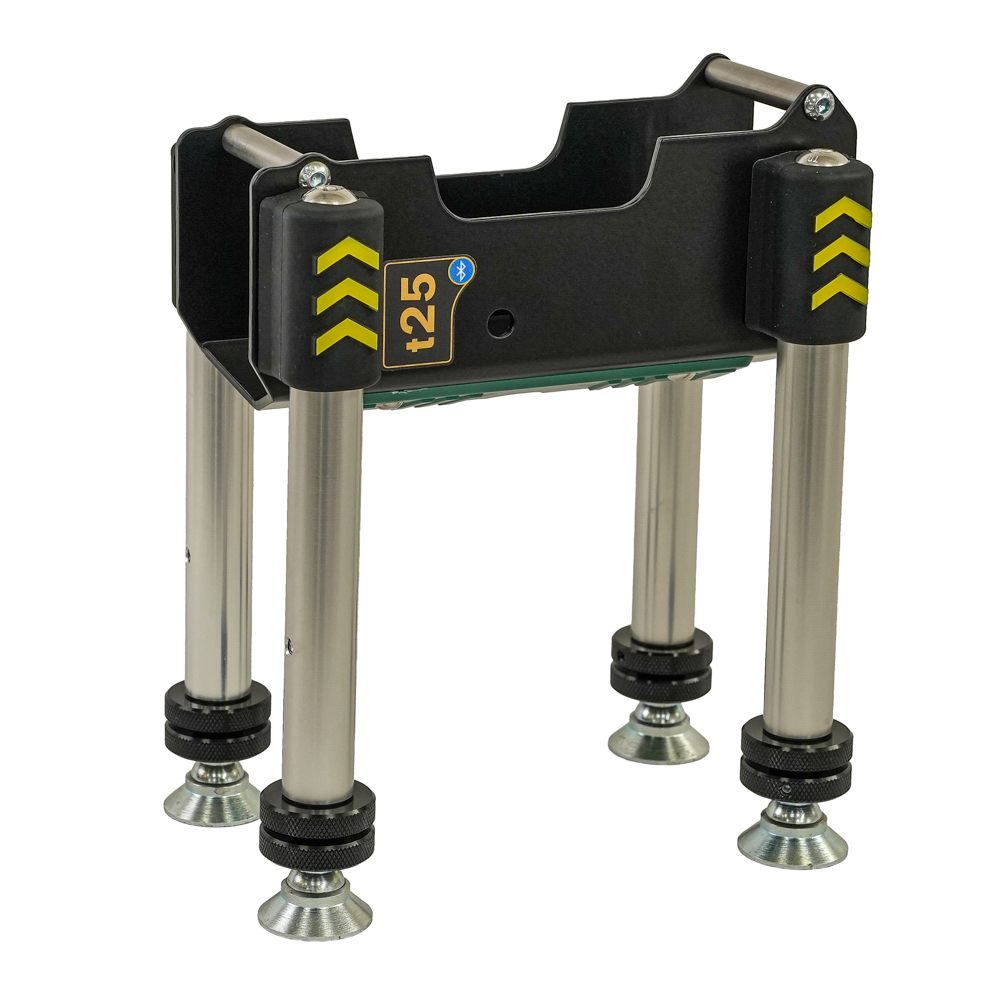

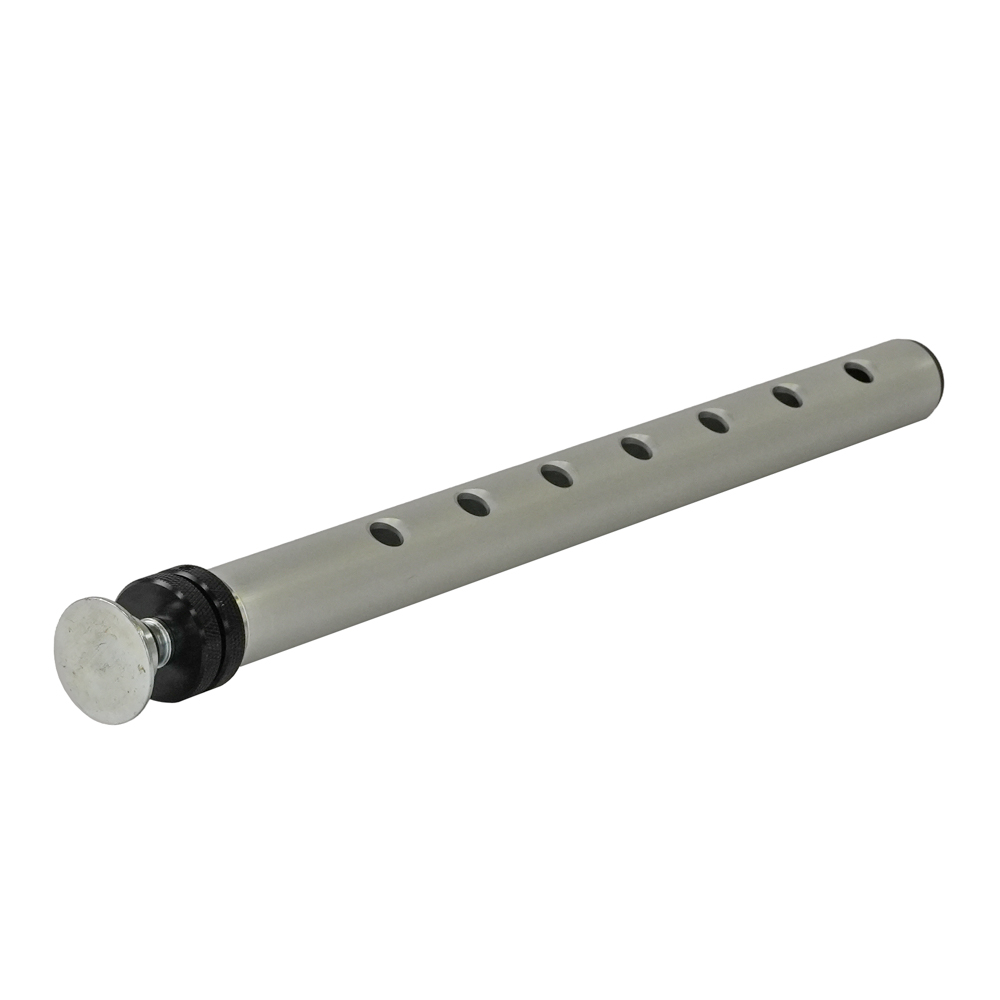

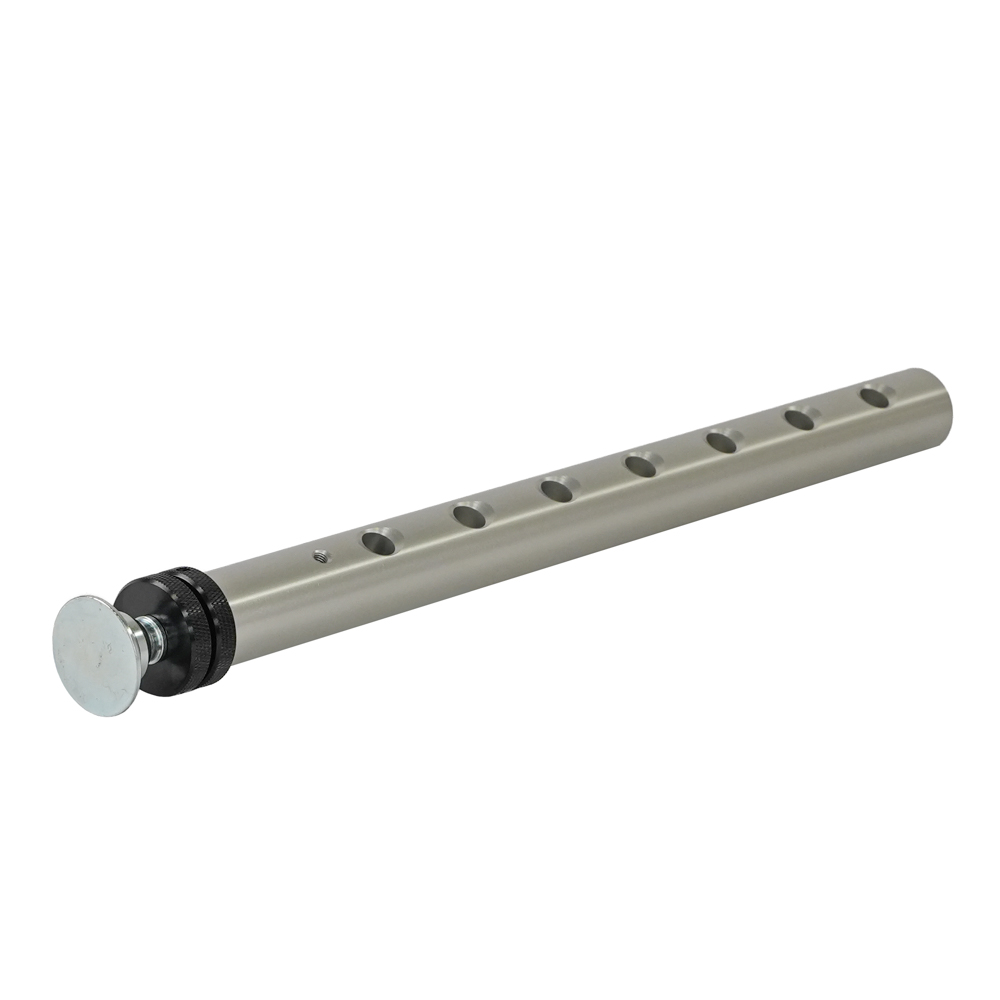

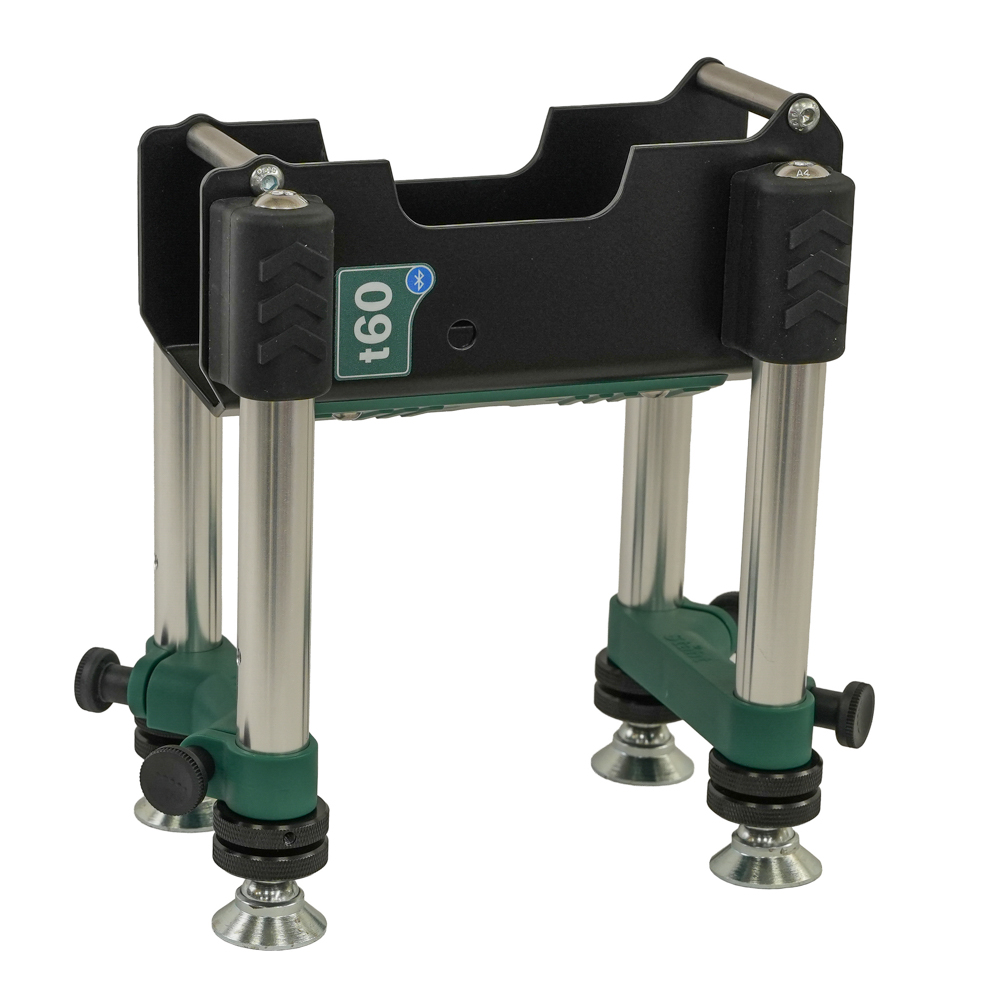

Where you need the full clearance, add the 500 mm drop rod and thrust nut. The standard t25 and t60 bridges, spare legs, spacers and spreader plates are here too.
Watch how to use the Staht bridges.
On roofs: testing roof anchors, posts and eyebolts.
Questions and answers
Go by the load and the room you need: the 375-25 gives a 375 mm span and up to 340 mm clearance at 25 kN; the 575-25 gives 575 mm and up to 544 mm at 25 kN; the 375-60 gives 375 mm and up to 330 mm at 60 kN.
No. The t25 and t60 testers are sold separately.
Where you need the bridge's full clearance, yes: add the 500 mm drop rod and thrust nut (700-030).
Spreader plates fit under the feet and spread the load over a larger area, such as on internal walls or roofs.
